CLF OEM LiFePO4 EV بطارية الليثيوم 96V 120V 360V 100ah 200Ah بطارية عالية الجهد لسيارات شاحنة منخفضة السرعة
اتصل شخص : Rosa Liu
رقم الهاتف : +86 18975107916
واتساب : +8618975107916
| الحد الأدنى لكمية : | 2 وحدة | الأسعار : | قابل للتفاوض |
|---|---|---|---|
| تفاصيل التغليف : | حالة خشبية وقضية الكرتون | وقت التسليم : | 7-15 يوم عمل |
| شروط الدفع : | تي/تي | القدرة على العرض : | 10000 وحدة في الشهر |
| مكان المنشأ: | هونان ، الصين | اسم العلامة التجارية: | Chalong Fly |
|---|---|---|---|
| إصدار الشهادات: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | رقم الموديل: | CLFLE218 |
|
معلومات تفصيلية |
|||
| نوع البطارية:: | بطارية lifepo4 | الجهد االكهربى:: | 48 فولت |
|---|---|---|---|
| سعة:: | 200 أمبير | مقاس:: | حسب الطلب |
| OEM/ODM:: | نعم | حزمة النقل:: | حالة الرغوة والخشب الرقائقي |
| معيار للماء:: | IP67 | رمز HS:: | 8507600090 |
| سمات:: | فعالة من حيث التكلفة ، وسرعة التسليم ، وهيكل مستقر | طلب:: | مركبة كهربائية ، قارب كهربائي ، يخت كهربائي ، بحري |
منتوج وصف

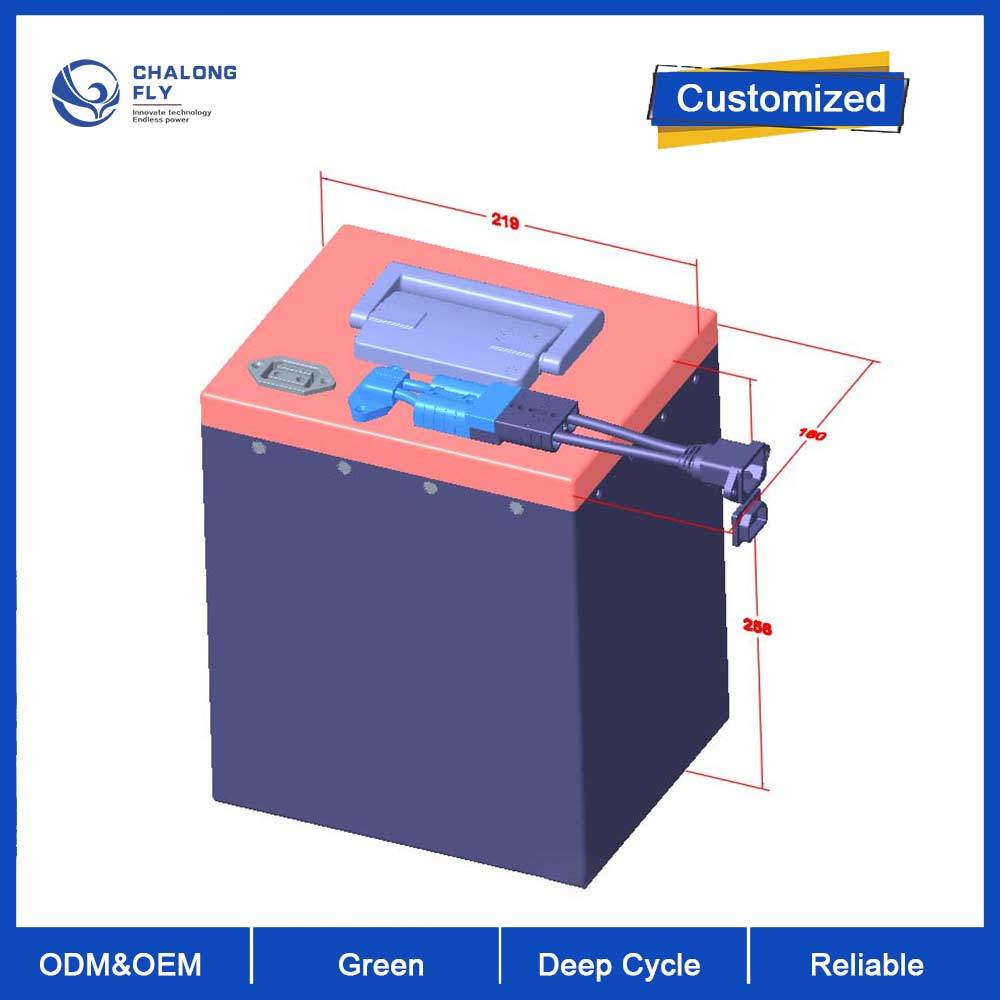

This 72V 45Ah lithium iron phosphate (LiFePO4) battery is specially designed for high-power electric two-wheelers, including electric scooters, electric motorcycles, takeaway delivery vehicles and modified commuter vehicles. It completely solves the pain points of traditional lead-acid batteries such as short battery life, heavy weight, slow charging and short cycle life, providing stable, safe and long-lasting power support for long-distance travel and high-intensity use. With industrial-grade LiFePO4 cells and intelligent BMS protection system, it features ultra-long cycle life, lightweight design, IP67 waterproof/dustproof performance and wide temperature adaptability, making it the best upgrade choice for 72V electric two-wheelers.
| Parameter Item | Specification Details |
|---|---|
| Model Number | LFP-7245-TW |
| Nominal Voltage | 72V |
| Nominal Capacity | 45Ah |
| Total Energy | 3.24kWh |
| Cell Type | LiFePO4 (Lithium Iron Phosphate) |
| Charge Voltage | 84.0V ±0.2V |
| Cut-Off Discharge Voltage | 63.0V ±0.2V |
| Max Continuous Discharge Current | 45A (1C) |
| Peak Discharge Current | 90A (2C, 30s) |
| Standard Charge Current | 10A (0.2C), support 2C fast charge |
| Cycle Life | ≥1500 cycles @80% DoD, ≥2000 cycles @50% DoD |
| Working Temperature | Charge: 0~55℃; Discharge: -20~60℃ |
| Net Weight | ≈17.5kg |
| Product Dimension (L*W*H) | 480*290*175mm (customizable) |
| Protection Grade | IP67 waterproof & dustproof |
| Connector Type | Anderson 50A/XT90 (customizable) |
| Warranty Period | 5 years / 1000 cycles (whichever comes first) |
| Certifications | CE, RoHS, UN38.3, MSDS |
![]()
![]()
A1: The actual range is 120-150km, depending on motor power (1500-2000W), vehicle load, road conditions and driving habits; flat road with light load can reach the upper limit of range.
A2: Standard 10A charger: 6-8 hours full charge; 2C fast charger: 3-4 hours full charge, fast charge mode does not damage the battery.
A3: Yes, it is a direct upgrade replacement for 72V lead-acid batteries, same voltage interface, plug-and-play, no circuit modification required.
A4: We provide 5-year or 1000-cycle warranty (whichever comes first), covering quality defects (non-human damage).
A5: It has IP67 waterproof grade, can be used normally in rainy days, resist daily splashing and light immersion, but do not soak in water for a long time.
A6: LiFePO4 battery has lighter weight (45% lighter), longer cycle life (5-8 times), faster charging, higher safety, zero maintenance, and better overall performance than lead-acid batteries.
A7: Yes, it supports normal discharge at -20℃, with small capacity attenuation, suitable for cold regions; it is recommended to charge in room temperature environment in extreme cold.
