خزانة ESS 258KWH 289KWH 385KWH LiFePO4 خزانة تخزين الطاقة لصناعة وتجارة خزانة تخزين الطاقة
اتصل شخص : Rosa Liu
رقم الهاتف : +86 18975107916
واتساب : +8618975107916
| الحد الأدنى لكمية : | 2 وحدة | الأسعار : | قابل للتفاوض |
|---|---|---|---|
| تفاصيل التغليف : | حالة خشبية وقضية الكرتون | وقت التسليم : | 20 يوم عمل |
| شروط الدفع : | تي/تي | القدرة على العرض : | 1000 وحدة شهريا |
| مكان المنشأ: | هونان ، الصين | اسم العلامة التجارية: | Chalong Fly |
|---|---|---|---|
| إصدار الشهادات: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | رقم الموديل: | CLFLE143 |
|
معلومات تفصيلية |
|||
| الجهد الاسمي: | 48 فولت | القدرة الاسمية: | 100 أمبير / 150 أمبير / 200 أمبير |
|---|---|---|---|
| ضد للماء: | IP65 | قابلة للتخصيص: | نعم |
| نوع وحدة التحكم: | MPPT | تردد الإخراج: | 60 هرتز / 50 هرتز |
| طاقة التحميل (W): | 3KW ، 5kW ، 10KW | خدمات إدارة المباني: | حماية BMS مدمجة |
| نوع لوحة الطاقة الشمسية: | السيليكون أحادي البلورية | شهادة: | CE ، ROHS ، FCC ، IEC62133 ، MSDS ، UN38.3 ، UL ، إلخ |
| طلب: | منزل ، فيلا ، مباني منزلية ، منزل ، تخزين الطاقة الشمسية السكنية | ||
منتوج وصف

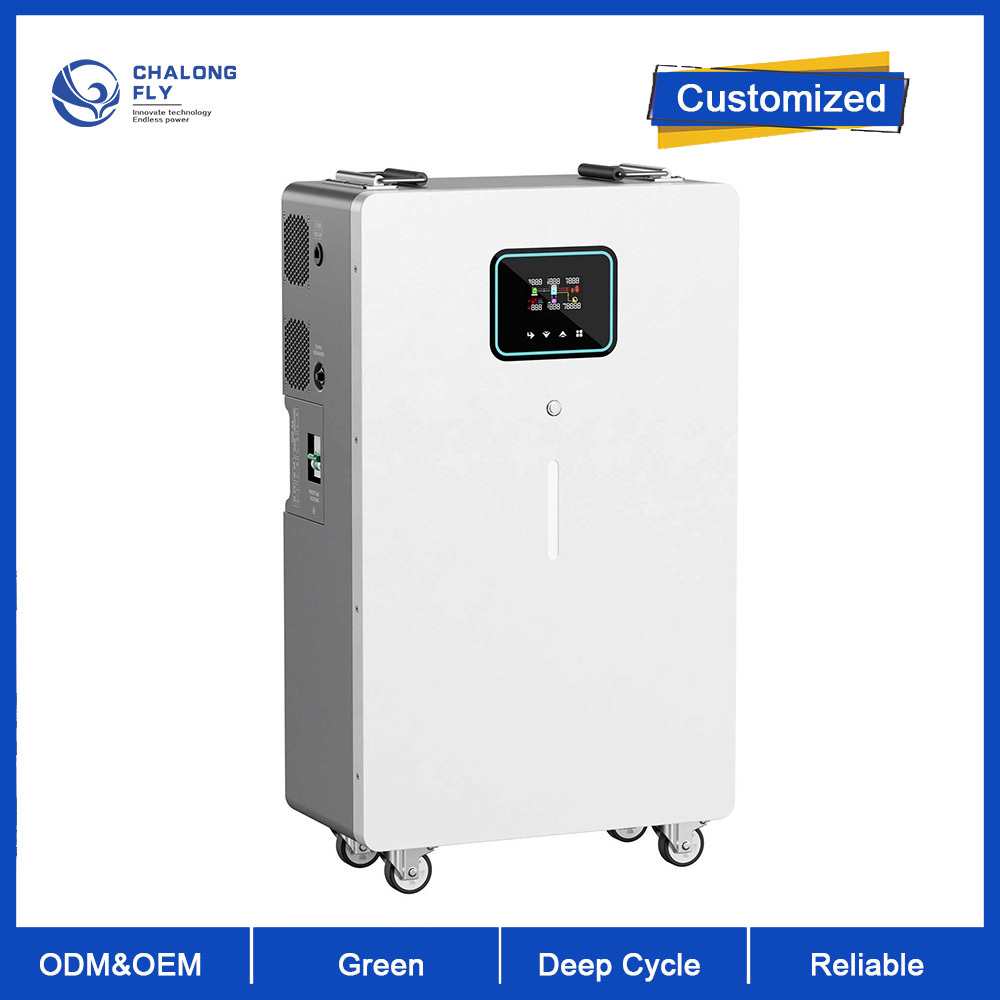

Designed specifically for home energy independence, this 10KW solar LiFePO4 battery pack (51.2V/48V 200Ah) is an ideal choice for household energy Power Wall. It perfectly matches the home photovoltaic system, realizing a closed-loop energy management of "photovoltaic power generation - energy storage - intelligent power supply". With 10KW high-power output, 200Ah large-capacity energy storage, and LiFePO4 safe battery cells, it can easily meet the multiple needs of large-family daily electricity use, peak-valley electricity price arbitrage, and emergency power supply during sudden power outages, balancing energy saving, environmental protection and convenience, allowing families to completely get rid of grid dependence and enjoy stable, clean green energy.
10KW rated power design, far exceeding ordinary home energy storage systems, can drive multiple high-power household appliances (such as central air conditioners, electric water heaters, induction cookers, etc.) at the same time, easily covering the entire electricity needs of large families with 150-300 square meters, without worrying about the inability of household appliances to operate normally due to insufficient power, realizing self-sufficiency in the whole family's electricity use.
| Parameter Name | Specification |
|---|---|
| Product Model | Household Solar LiFePO4 Energy Storage Power Wall |
| System Power | 10KW |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V / 48V (Dual Voltage Adaptation) |
| Battery Capacity | 200Ah |
| Charge-Discharge Cycles | ≥6000 Cycles (80% DOD, 25℃±2℃) |
| Service Life | Up to 10 Years |
| Max PV Input Voltage | 500Vdc |
| MPPT Charge Controller | Built-in 150A MPPT, Voltage Range: 120-450Vdc |
| AC Output Voltage | 230V AC (Single Phase) / 400V AC (Three Phase, Optional) |
| AC Output Frequency | 50/60Hz (Auto Adaptation) |
| Charge-Discharge Efficiency | ≥95% |
| Operating Temperature | -20℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +70℃ |
| Protection Level | IP65 (Waterproof and Dustproof) |
| Installation Type | Wall-mounted / Floor-mounted |
| Remote Monitoring | Support WiFi / GPRS / RS485 |
| Max Parallel Quantity | 8 Sets |
| Warranty | 3 Years (Battery), 5 Years (Inverter) |
10KW rated power design, far exceeding ordinary home energy storage systems, can drive multiple high-power household appliances (such as central air conditioners, electric water heaters, induction cookers, etc.) at the same time, easily covering the entire electricity needs of large families with 150-300 square meters, without worrying about the inability of household appliances to operate normally due to insufficient power, realizing self-sufficiency in the whole family's electricity use.
Supports 51.2V/48V dual-voltage adaptation, compatible with most home photovoltaic inverters, with stronger adaptability; 200Ah large-capacity battery cells, high energy storage density, a single full charge can meet the basic electricity needs of ordinary families for more than 24 hours, and can ensure the continuous operation of key household appliances in emergency situations, completely solving the anxiety of power outages.
Q1. Are you a factory?
A: Yes, we are a professional lithium battery manufacturer in China, and factory tour is acceptable.
Q2. Do you accept OEM/ODM?
A: Yes, OEM, ODM, LOGO, and STICKER is acceptable, our professional team is on hand to offer you any solutions.
Q3. Can I have a sample order first?
A: Yes, sample order is acceptable.
Q4. How will my order be shipped?
A: Chalong Fly offers a variety of shipping methods, such as DHL, UPS, FedEx, TNT, Airline and sea shipping.
Q5: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc.
Q6. Can we sign a NDA in order for a long-term cooperation?
A: Yes, the client’s requirements is respected.
O7: Is there any warranty or After-Sale Service?
A: We will check each battery before shipment, and 100% high quality guaranteed. The warranty is about 1~20 years depends on different models.
Q8. Why do you choose Chalong Fly?
A: Chalong Fly R&D center has more than 60 R&D engineers, 12 of whom have more than 10 years of experience related to power development. We have a deep understanding of power electronics technology, and a full understanding of the needs of the application industry, and have developed many public technology solutions.
Contact us for more informations!
