CLF OEM LiFePO4 EV بطارية الليثيوم 96V 120V 360V 100ah 200Ah بطارية عالية الجهد لسيارات شاحنة منخفضة السرعة
اتصل شخص : Rosa Liu
رقم الهاتف : +86 18975107916
واتساب : +8618975107916
| الحد الأدنى لكمية : | 10 وحدات | الأسعار : | قابل للتفاوض |
|---|---|---|---|
| تفاصيل التغليف : | صندوق خشبي وعلب كرتونية | وقت التسليم : | 7-15 يوم عمل |
| مكان المنشأ: | الصين | اسم العلامة التجارية: | CLF/OEM |
|---|---|---|---|
| إصدار الشهادات: | CE, ROHS,UN38.3, MSDS | رقم الموديل: | CLF-R3817 |
|
معلومات تفصيلية |
|||
| نموذج البطارية: | CLF-R3817 | خلية البطارية: | الصف أ |
|---|---|---|---|
| نوع البطارية: | الليثيوم | مواد الأنود: | LFP / NCM |
| الجهد الاسمي:: | 60 فولت | السعة الاسمية:: | 100ah / حسب الطلب |
| تيار التفريغ: | 100 أ | ماكس تيار التفريغ المستمر: | 200 أ |
| دورة الحياة:: | > 6000 (بنسبة 80٪ وزارة الدفاع) | مقاس: | 550 * 375 * 180 ملم / حسب الطلب |
| درجة IP: | IP67 | طلب:: | رافعة شوكية ، عربات جولف ، حافلة منخفضة السرعة ، مركبة صرف صحي ، إلخ |
| تصنيع المعدات الأصلية/تصنيع التصميم الشخصي: | مقبول | ||
منتوج وصف

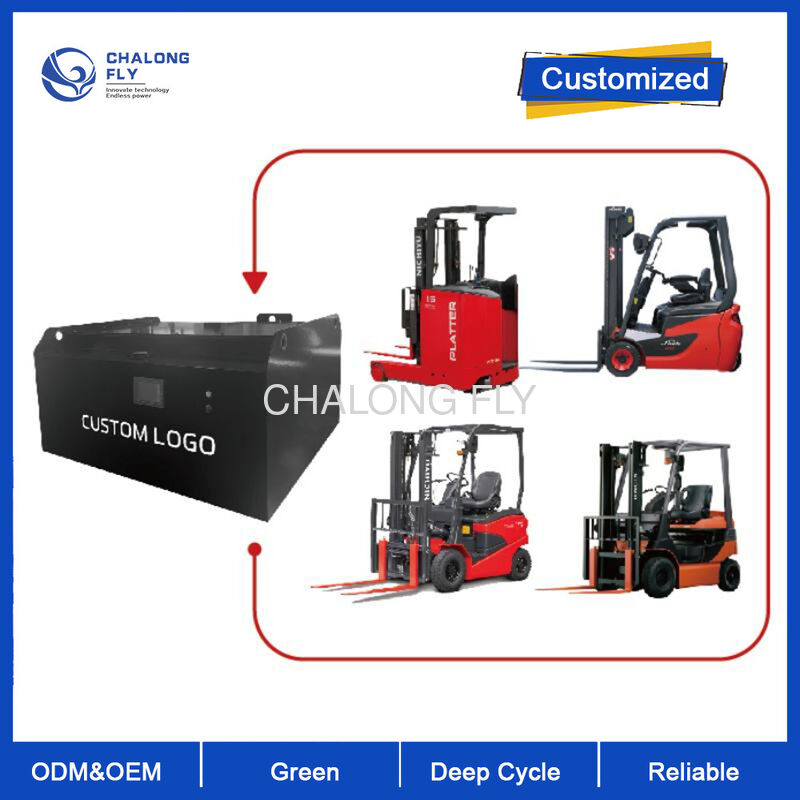

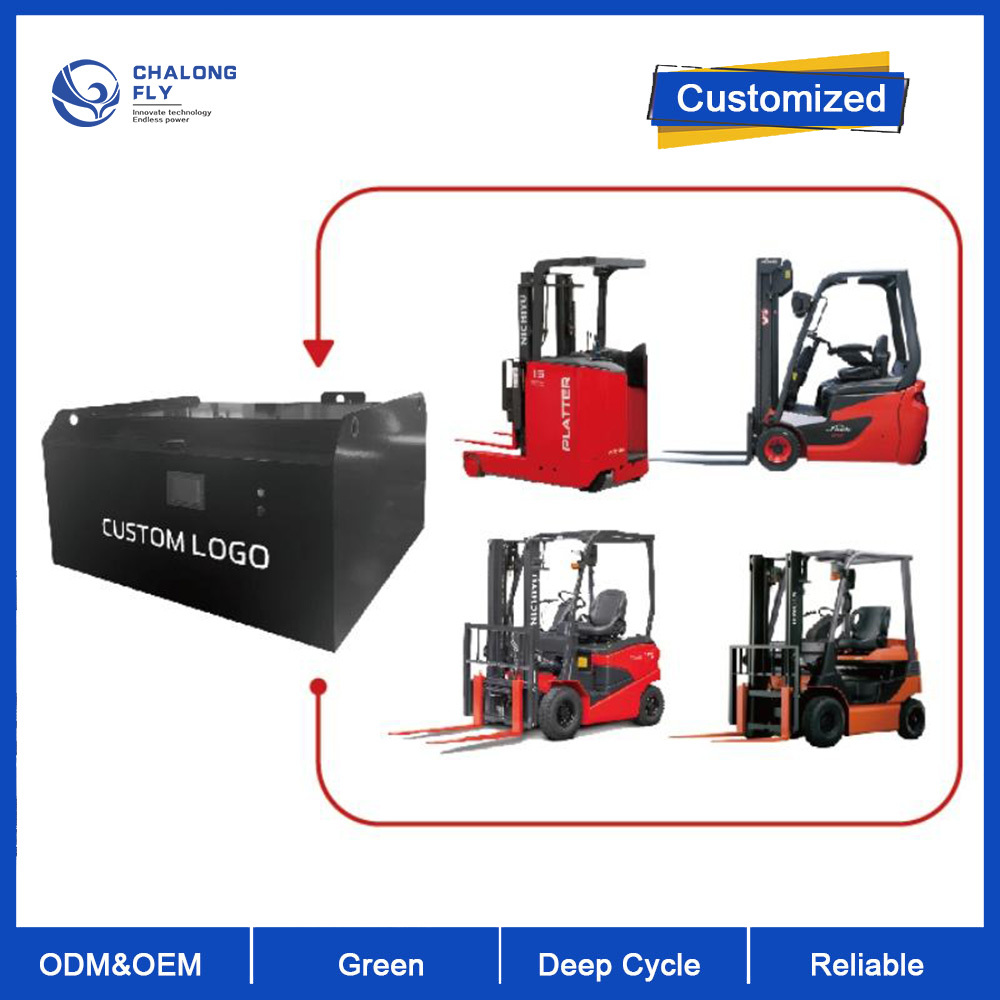

120V 200Ah LiFePO4 Forklift Battery is a professional energy solution specially designed for electric forklifts, pallet jacks, stackers, and various industrial warehouse handling equipment. Adopting high-quality grade A LiFePO4 cells and integrated smart BMS protection system, it features long cycle life, maintenance-free operation, stable output performance, fast charging, and low self-discharge, which can fully replace traditional lead-acid batteries and help enterprises reduce operation costs while improving work efficiency. OEM/ODM customization services are available to meet different equipment and application needs.
| Item | Specification |
|---|---|
| Rated Voltage | 120V DC |
| Rated Capacity | 200Ah (0.2C, 25℃) |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | ≥6000 Cycles @ 80% DOD (Depth of Discharge); ≥8000 Cycles @ 50% DOD |
| Charging Voltage | 136.5V DC (Constant Current & Constant Voltage Charging) |
| Charging Current | 20A-40A (Fast Charging Optional: 60A) |
| Discharge Cut-off Voltage | 102V DC |
| Max Continuous Discharge Current | 200A (300A Peak Discharge for 10s) |
| Built-in BMS | Intelligent Battery Management System, supporting overcharge, overdischarge, overcurrent, short circuit, over-temperature, under-temperature, and balance protection |
| Self-discharge Rate | ≤3% per month (25℃, no load) |
| Operating Temperature Range | Charging: 0℃ ~ 55℃; Discharging: -20℃ ~ 60℃ |
| Storage Temperature Range | -20℃ ~ 45℃ (Recommended: 10℃ ~ 25℃, 50% SOC) |
| Dimension (L×W×H) | 650mm×480mm×280mm (Customizable according to equipment requirements) |
| Net Weight | 85kg (About 40% lighter than lead-acid battery of the same capacity) |
| Connector Type | Anderson Connector / DIN Connector / Custom Connector |
| Waterproof Grade | IP54 (IP65 Optional for harsh environments) |
| Application | Electric Forklift, Counterbalance Forklift, Pallet Truck, Stacker, Warehouse Logistics Handling Equipment, Industrial Backup Power |
| Certifications | CE, MSDS, UN38.3, IEC62133, RoHS |
| Warranty Period | 3 Years (or 3000 Cycles, whichever comes first) |
| Custom Service | OEM/ODM, Logo Customization, Shell Color Customization, Connector Customization, Capacity/Voltage Customization, Communication Protocol Customization (CANbus Optional) |
1. Ultra-Long Cycle Life, Cost-Saving
Adopts 100% grade A LiFePO4 cells with high purity and stable performance, strict screening and aging test. The cycle life reaches more than 6000 times at 80% DOD, which is 3-5 times that of traditional lead-acid batteries (usually 1000-1500 cycles). It can be used for 5-8 years under normal use, greatly reducing the frequency of battery replacement and saving long-term purchase and replacement costs for enterprises.
2.Fast Charging & Stable Discharge, Meet Long-Time Work Needs
Supports fast charging technology, which can be fully charged in 3-5 hours (depending on charging current), while traditional lead-acid batteries usually take 8-12 hours. The battery has stable continuous discharge performance, with a constant output voltage during discharge, ensuring that the forklift maintains stable power during long-time continuous operation (8-12 hours of continuous work per full charge), suitable for high-intensity warehouse logistics operations.
English: Our 120V 200Ah LiFePO4 forklift battery is widely used in various industrial and logistics scenarios, mainly suitable for: 1. Electric forklifts (counterbalance forklifts, reach forklifts, order pickers) in warehouses, factories, and logistics parks; 2. Pallet trucks, stackers, and other material handling equipment for goods loading, unloading, and stacking; 3. Industrial workshops, ports, and terminals for heavy-duty handling operations; 4. Cold storage and low-temperature environments (withstand -20℃ low-temperature discharge); 5. Industrial backup power supply for factories, warehouses, and other places (emergency power supply when the main power is cut off).
![]()
